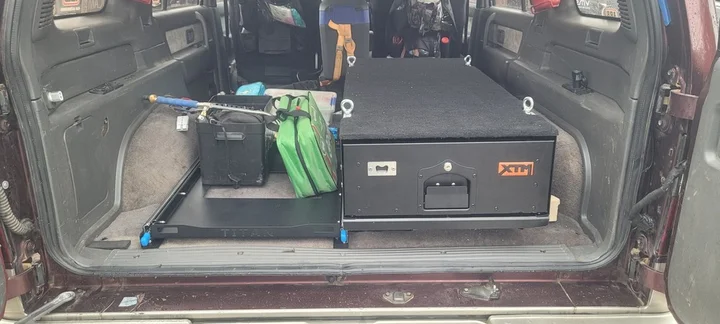

XTM Modular Drawer With Fixed Top

Okay drawers but screws are useless at best – These drawers are not too bad but they do have an issue, the bolts that hold it together have about the strength of Cheese. The unit I bought already had a snapped bolt in one of the nutserts that hold on the top. Luckily, they only use 8 screws, not like Titan drawers that have about 30. When I removed the top to mount the frame, there was a snapped off screw from the factory and since then, I have had to replace a further 3 nutserts to make the top screw down again.

These drawers have a much better drawer removal system with the latches at the rear but be warned that if you buy these, replace the screws. When I say screws, I mean machine screws, countersunk with a 4 mm Allen head and an M6 thread and approx 2.5 cm long.

I had a situation where I thought the drawer was locked but I could not find the key. Had I found the key it would still not have opened however, I couldn't so I drilled out the lock, but the drawer still would not open.

It turned out that when I screwed my inverter to the rear, one of the self-tapping screws had turned one thread into the drawer and that was holding it closed. This means that the outer shell is nowhere near as good as the cheaper King's drawers have.
