BAUMR-AG 305mm Dual Bevel Sliding Compound Mitre Drop Saw and Adjustable Stand Combo

The first thing you should know is that the image of this product on the website is photoshopped, specifically the saw is photoshopped onto the… Read more ·  1

stand. Why they've done this instead of simply taking a pitcure of the assembled unit, I have no idea. It would have helped a lot because the saw doesn't fit on the stand as shown. I've attached some pics of what the unit looks like assembled to help. Most of my pics have the lock still in place. When you take it out, the saw will rise to its highest point.

First impressions - it's actually pretty decent. The stand is good despite the image being wrong. It comes with brackets with easy release handles. It all looks quite well built.

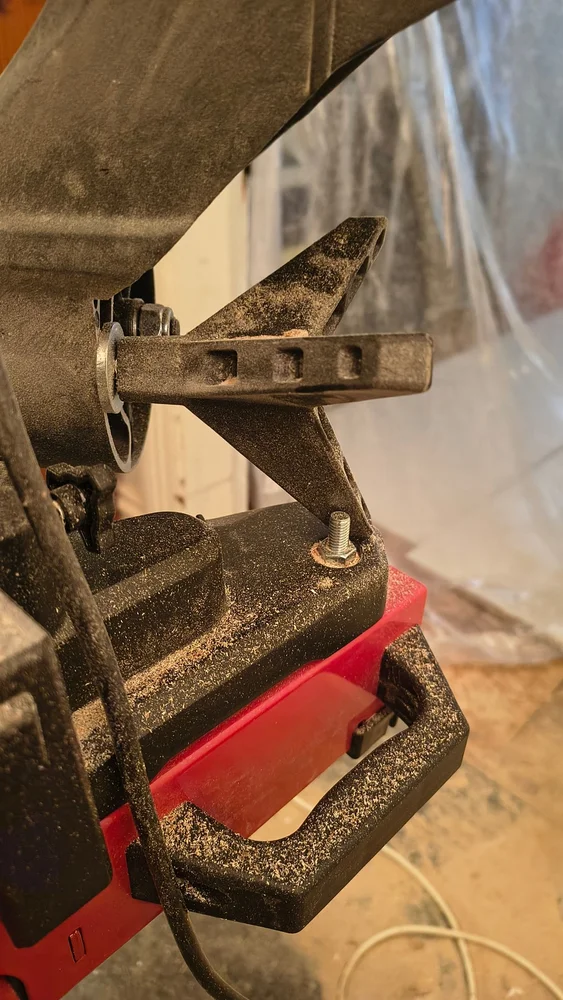

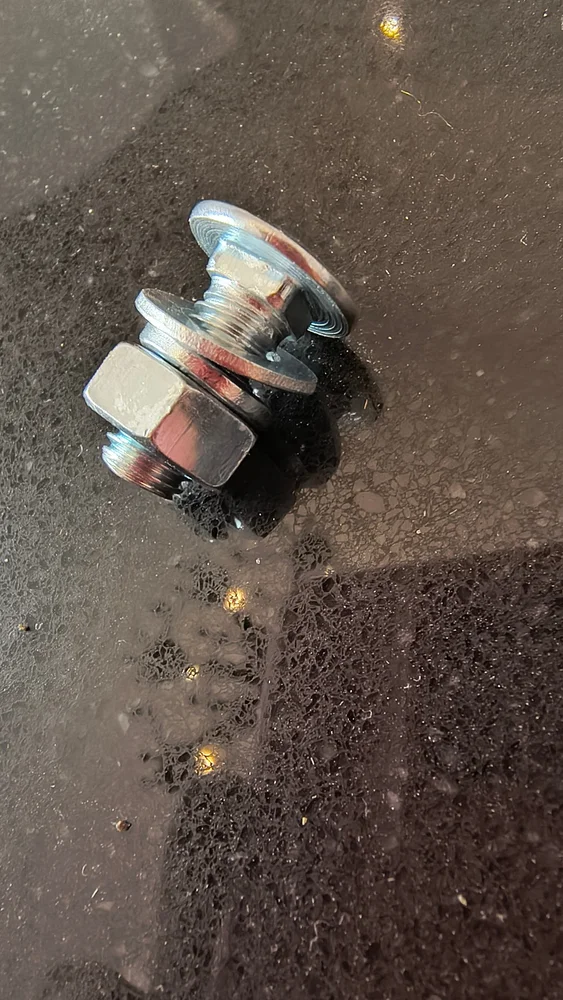

Important assembly note, the bolts that hold the saw to the stand braces are the wrong type to have the head of the bolt on top, so the only way to bolt the saw to the stand's quick release brackets is with the nut at the top. This causes bevel lock to hit it. You can see this in on of my photos. If they had supplied better bolts it would help. Then again, the stand isn't really made for this larger saw obviously because one of the bolts sits right on the hinge of the quick release and you wouldn't be able to get a socket in there to tighten it anyway. Someone should fix this because it's one of the few stupid things about this unit.

Accuracy: the bevel guage is horrible. Someone didn't quite know how to draw degree lines obviously. The little arrow that points to the degree marker is also horrible because it barely has a point on it. The label was damaged on mine and will likely fall off. Hopefully not. There are notches for zero and 45 degrees though, which seem to be fairly accurate on the bevel and on the table. The table lables are good and quite accurate. The table zero (90 dregree cuts) is 0.1 degrees off and there's not much you can do to change it because it's locked by the notch. That's still fairly accurate IMO. The 45 degrees on either side of the table were off slightly as well, but accurate enough for my work. When cutting at 45 degree angles, there was some lateral wobble in the blade as it spun, but it went away and din't come back for further cutting.

I mention a smell when I started the unit up for the first time in the attached video. It went away fairly quickly and didn't return.

The supplied blade cuts 3mm and the laser is dead in the middle of it and is 1mm wide. I got very sharp cuts with the supplied blade despite it being only 40T.

The slider moves cleanly with no points of resistance.

You can cut groves by setting the blade height and preventing the blade coming down too far. I found that when doing this, the front of the cut was 0.6mm deeper toward the front of the saw vs the back over 100mm. I'd expect about a 2mm depth difference over a 300mm piece of timber. This suggests that the slider isn't perfectly parallel to the table.

The manual is barely a manual. They shouldn't call it that. The should call it an information sheet.

All in all, I'd recommend the unit from what I've seen so far. It's cheap, but decent.
